Smithtek.Cloud: Our In-House Scada Platform
Engineered for industrial reliability, Smithtek.cloud delivers secure, real-time SCADA functionality through a flexible, cloud-based architecture.
.png)
Smithtek.cloud is a cutting-edge web-based HMI SCADA system
designed to provide flexibility and real-time insights.
Within our cloud platform, you can effortlessly monitor and
retrieve data independently from both the PassPort Gateway
and the Mako V2 PLC or seamlessly integrate them through
various IoT connection methods.
Data points, which we refer to as 'variables,' respond
instantly to sensor changes, creating dynamic 'data dots' or
timestamps. Our platform offers an extensive data retention
period of up to 2 years, ensuring that historical data is readily
available for analysis.
Additionally, Smithtek.cloud supports GPS tracking and heatmap functionality, enabling you to gain deeper insights into
your operations and assets. Much like a traditional SCADA system, our platform empowers you to personalise and design your own cloud-based dashboard. Our intuitive drag-and-drop interface ensures that you can have your system up and running within minutes. Customise your dashboard to meet your unique needs and harness the power of real-time data visualisation.
_edited.jpg)
Smithtek.Cloud: Features
WIDGETS
Smithtek.Cloud has its own customisable widgets to use, these include Line Charts, SCADA Widgets, Switches, Sliders, Wind Rose Map and many more. Below is an example of widgets available using the Smithtek.Cloud.
_edited.jpg)
EVENTS ENGINES
The Events Engine in Smithtek.Cloud allows users to create automated rules that trigger alerts or actions based on
real-time data conditions. It enables proactive monitoring and automated decision-making without needing to constantly watch the dashboard.
DASHBOARD SHARING
Easily share live system dashboards with your team, clients, or operators, wherever they are. With Smithtek.Cloud, you can generate secure links that allow others to view or interact with your dashboards in real-time. It’s the perfect way to keep everyone connected, informed, and in sync.
_edited.png)

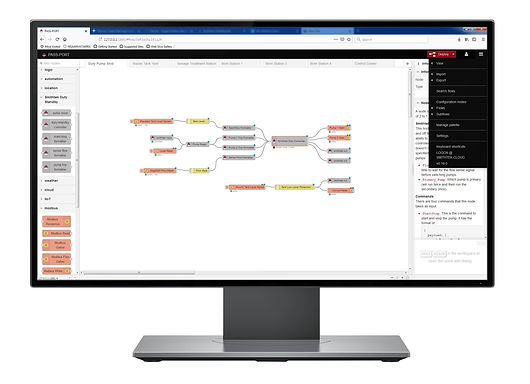

PASS-PORT Device Gateway Flow Editor
_edited.png)
The Pass-Port Gateway unlocks endless possibilities for automation and control. Built on the powerful IBM Node-RED platform, it offers a revolutionary, rapid, and visual way to program your field devices. Using a simple, flow-based interface, you can drag and drop functions, wire them together, and deploy your logic in seconds, no complex coding required.
To make life easier we have created customised Smithtek Nodes for Node-RED, these pre-configured nodes are specifically designed for industrial IoT and SCADA use, allowing rapid deployment with minimal setup. For added flexibility, you can also integrate with other cloud platforms to suit your project requirements.
Here are a few examples of the nodes we have created on Node-RED
Smithtek Data Plan
We only offer a single data plan. The plan allows you to have 20 variables with a cap of 1 million data transmissions per month.
(1).jpg)
BENEFITS OF USING SMITHTEK.CLOUD
DATA PLAN
✅ 1 cost effective payment, billed annually
✅ Up to 20 variables and 1 x million data dots per month
✅ 1000 configured alarm events per device
✅ No third-party middle-ware required
✅ Reliable time-stamped records
✅ Seamless integration with the Mako & PassPort
✅ ISO27001 security management. MQTT with TLS encryption
✅ Simple drag & drop dashboard design
✅ Data retention for up to 2 years
✅ SCADA dashboard design
✅ Synthetic variables
✅ One less thing for you to worry about!
.png)
Data Transmission Explanation
How you use your 1 million transmissions across your 20 variables is entirely up to you.
-
Single Sensor Variable:
If you have a single sensor, like a temperature
sensor, and require high-frequency updates,
you could update 23 times a minute
(see Row 1 in the table below).
-
Multiple Variables:
If you need maximum remote monitoring for
multiple variables, such as a pump skid
with 20 variables, you can update each one
once every minute. Additionally, there is a
surplus capacity available for remote control
back to your asset
(see Row 20 in the table below).
Regardless of how you use your plan,
the 20 variables and 1 million transmissions
are always available for you to manage as
needed.
